Product Details

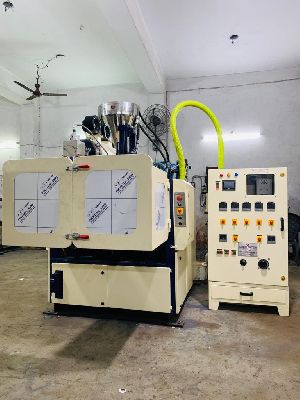

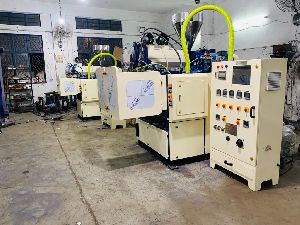

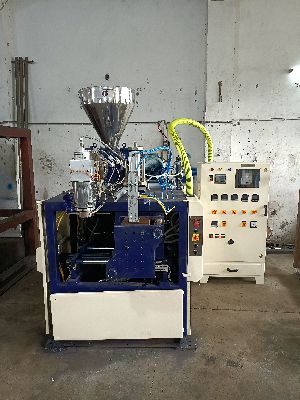

Buyers can get in touch with us for obtaining a superior quality range of 1 Liter Automatic Blow Moulding Machine (Model No : FEW-1000H) that is widely applauded due to its relaible performance. Loaded with latest features, our Blow Moulding Machines are accessible in different specifications and priced so nominally so that buyers can easily afford them.This is one of the superior quality FEW1000H Blow Moulding Machine in the indusry. As a prominent Manufacture, Exporter and Supplier of the Blowing Moulding Machine, we ensure to provide machines with best technical specification. Not just this, Blow Moulding Machine provided by us is also available market competitive prices.
Choice of :
- Auto Sealing
- PVC Suitability
- Single or Double Station
- Microprocessor Controls
- Double/triple Head
- viewing strip machine
- Blower
- Auto Deflashing
- Parison Control De3vice
- Multy point parison Control
- Extruders with bigger Screws
- Hot wire cutter
- Bottom blow Attachment
Specification
| Screw Diameter | 45 mm |
| Plasticizing Capacity | 16 to 20 Kg/hr |
| Maximum Opening | 200 mm |
| Minimum Opening | 150 mm |
| Ratio | 21 L/D |
| Blowing Capacity | 500 ml to 2 ltr. |
| Mould Thickness | 200 mm |
| Mould Length | 350 mm |
| Mould Width | 225 mm |
| Dry Cycles/ min | 15 Nos |
| Max Container Dia | 150 mm |
Details
| Electric | |
| Extruder Motor | 7.4/ 10 kw/hp |
| Hydrautlic Motor | 3.7/5 kw/hp |
| Oil Tank Capacity | 200 Ltr. |
| Heating Zone | 5 Nos |
| Heating Load | 6.5 kw |
| Blower | .18/.25kw/hp |
| Blower | 1 Nos |
| Total Power of M/c | 18 Kw |
| Electric | |
| Extruder Motor | 7.4/ 10 kw/hp |
| Hydrautlic Motor | 3.7/5 kw/hp |
| Oil Tank Capacity | 200 Ltr. |
| Heating Zone | 5 Nos |
| Heating Load | 6.5 kw |
| Blower | .18/.25kw/hp |
| Blower | 1 Nos |
| Total Power of M/c | 18 Kw |
